    Hovermap LHD

    • Request Pricing

    Identify hazards, reduce accidents and incidents

    An inability to adequately identify obstacles and structural hazards prior to and during LHD (also known as scooptram or bogger) operation can lead to accidents and incidents that have a significant production loss, cost and safety impact. Hovermap’s LHD solution makes underground mine production faster and safer by bringing near real time visibility to LHD operations.

    Connecting easily and securely to the LHD, Hovermap enables an operator to remotely conduct a 360-degree scan of the working face and visualize results in minutes for analysis, allowing them to safely identify obstacles and complex structural issues before they become a problem.



    “No drone. No CMS. Plug in, start, stop and you have survey-grade scans. Anyone can do it.”

    — Tim Campbell, Area Manager Operations, Mining Plus

    Benefit from:

    • Near real-time 360° visualization

      Fast, safe 360-degree visualization of a stope without the blind spots, no light required.

    • Safer operations

      Safer operations with the ability to conduct a Hovermap scan and view outputs remotely.

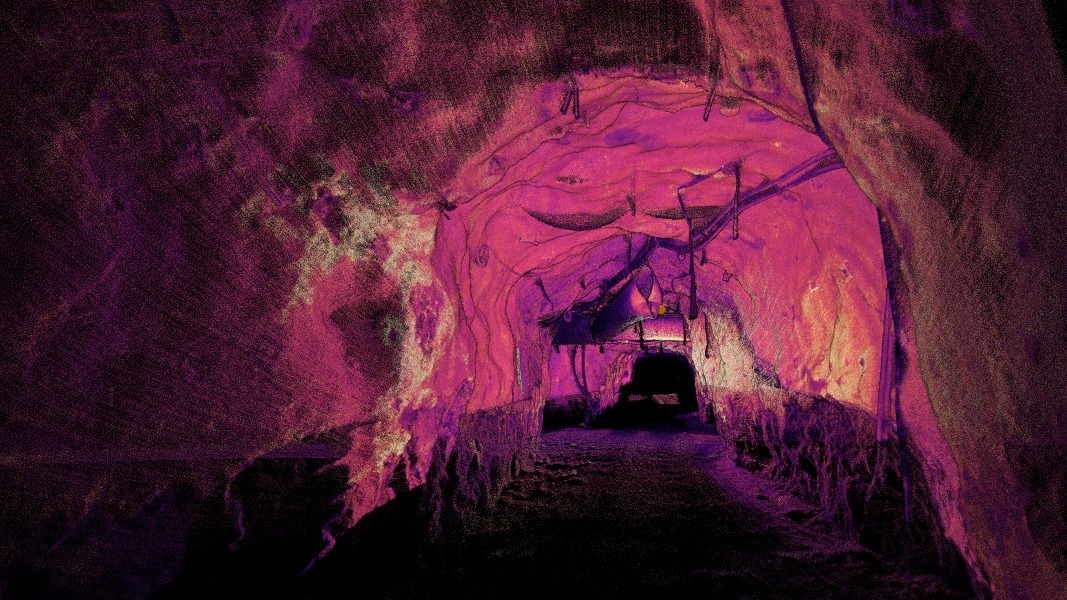

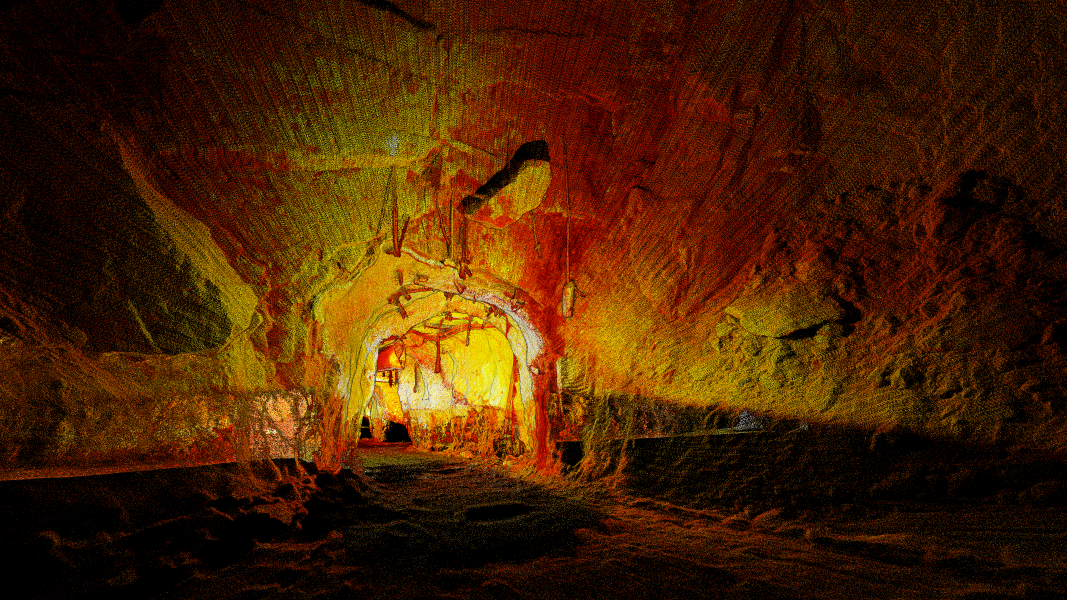

    • 3D visualization

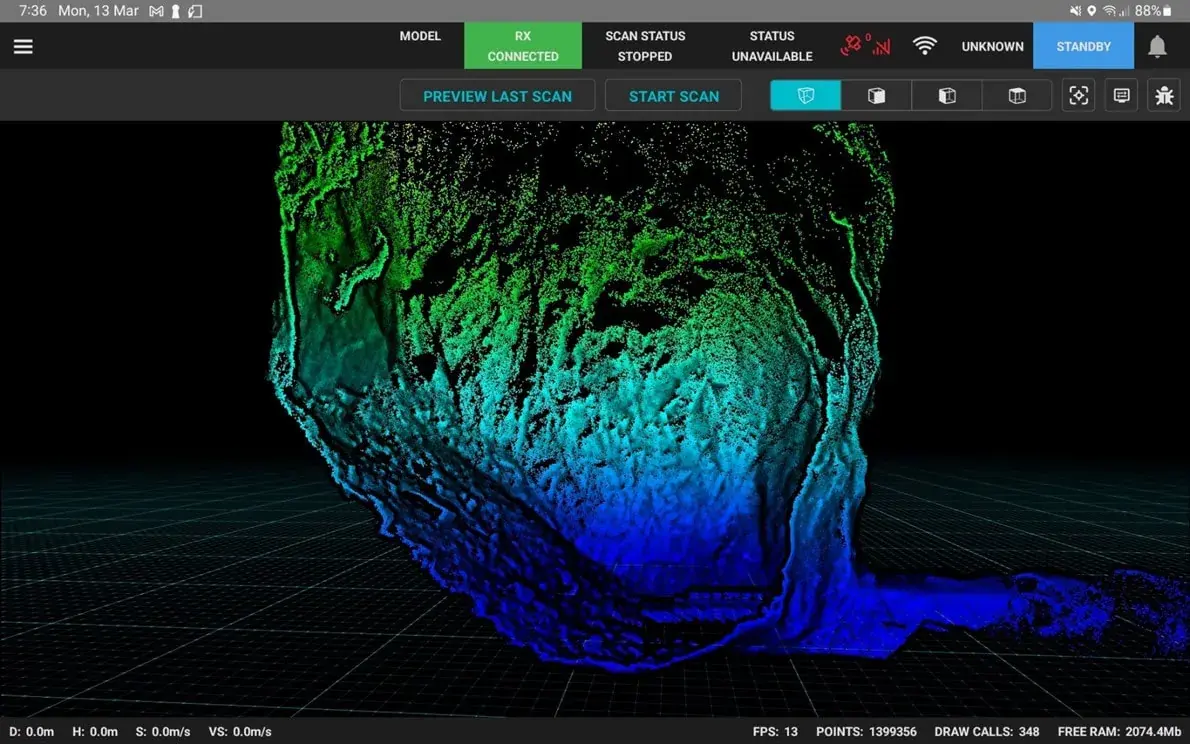

      Three-dimensional visualization to identify loose rocks, structural hazards, and rill angles.

    • Faster time to insight

      Faster time to insight without the need for a drone or surveyor – the simple design means a user can create accurate stope scans in minutes, with minimal training.​

    • Reduced downtime

      Reduced operational downtime, maximizing production.

    • Increased savings

      Savings on LHD vehicle repairs and reduction in replacement costs.

    Where to use Hovermap LHD

    • Mining operations: open stopes or use with drill rigs, including cut and fill, block and sub-level caving

    What’s in the kit?

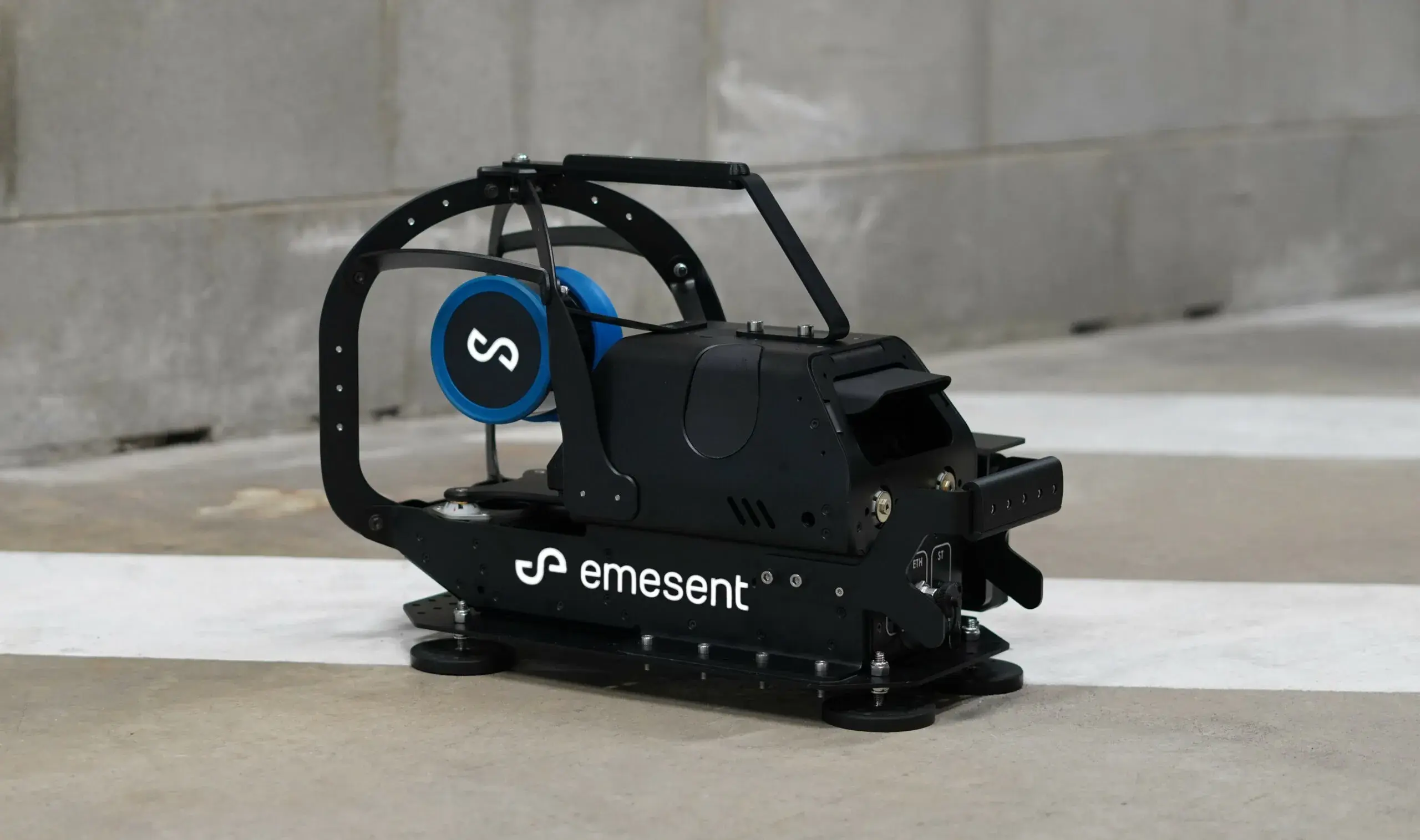

    • Hovermap LHD Mount with magnetic mounting pads and vibration isolators​
    • Commander Instant View software license​
    • Wheeled weatherproof transport case
    • Battery charger​
    • Battery cable for Hovermap​

    Compatible with

    • Hovermap ST or ST-X
    • Commander app on Android 12+
    • Samsung Galaxy Tab Active4 Pro 5G – SM-T636B or newer​
    Emesent Products
    Payloads
    • Hovermap
    Software
    • Aura
    • Commander
    Accessories
    • 360° Image Kit
    • Backpack RTK
    • CMS Mount
    • Drone RTK
    • Hovermap LHD
    • Vehicle RTK
    Extensions
    • 360° Colorization
    • Automated Ground Control
    • Long Range Radio
    Robotics platforms
    • Boston Dynamics Spot robot
    • DJI M350 RTK drone
    • Freefly Astro Max drone
  • Case study
    Advancing Safety and Productivity in LHD Operations

    Using Emesent’s innovative Hovermap LHD, Mining Plus and Byrnecut Global have set a new standard for operational excellence in underground mining.

    Read the case study

  • Want to learn more?

    Book a Demo

Backpack Specifications

Backpack Specifications

External Dimensions
498 mm x 370 mm x 185 mm
Battery Storage
Built in battery safety – batteries must be disconnected before stowing Hovermap
Transportation
ATA (Air Transport Association) 300 rated and fits in most aircraft overhead compartments
97Wh batteries are approved to fly on most airlines

Physical Specifications

Weight
4 kg empty
8.5 kg with accessories
